Equal Width Plot Sizes In Pyplot, While Keeping Aspect Ratio Equal

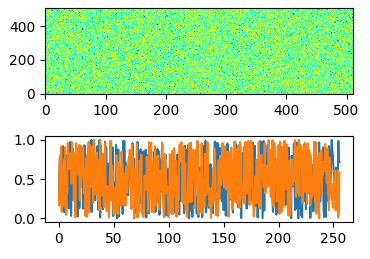

I want to have two plots be the same width, however the resulting code shrinks the imshow plot. xx = np.linspace(0.0,255.5,512) yy = np.linspace(0.0,255.5,512) Func = np.random.ran
Solution 1:
Some options:
A. `aspect="auto"
Use `aspect="auto" on the imshow plot
plt.imshow(..., aspect="auto")
B. adjust the figure margings
Adjust the figure margings or the figure size, such that the lower axes will have the same size as the imshow plot, e.g.
plt.subplots_adjust(left=0.35, right=0.65)
C. using a divider
You can use make_axes_locatable
functionality from mpl_toolkits.axes_grid1
to divide the image axes to make space for the other axes.
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import numpy as np
xx = np.linspace(0.0,255.5,512)
yy = np.linspace(0.0,255.5,512)
Func = np.random.rand(len(xx),len(yy))
fig, ax = plt.subplots(figsize=(4,5))
im = ax.imshow(Func, cmap = 'jet', interpolation = 'lanczos',origin = 'lower')
divider = make_axes_locatable(ax)
ax2 = divider.append_axes("bottom", size=0.8, pad=0.3)
cax = divider.append_axes("right", size=0.08, pad=0.1)
ax2.plot(xx,Func[:,255],yy,Func[255,:])
cbar = fig.colorbar(im,cax=cax)
plt.show()
